Finish wrapping the card and attach the label to the wrapping film.
Â
Productivity 12000PCS/H
Â
Packaging film thicknessÂ 0.025mm~0.05mm

Send Inquiry

Product Description

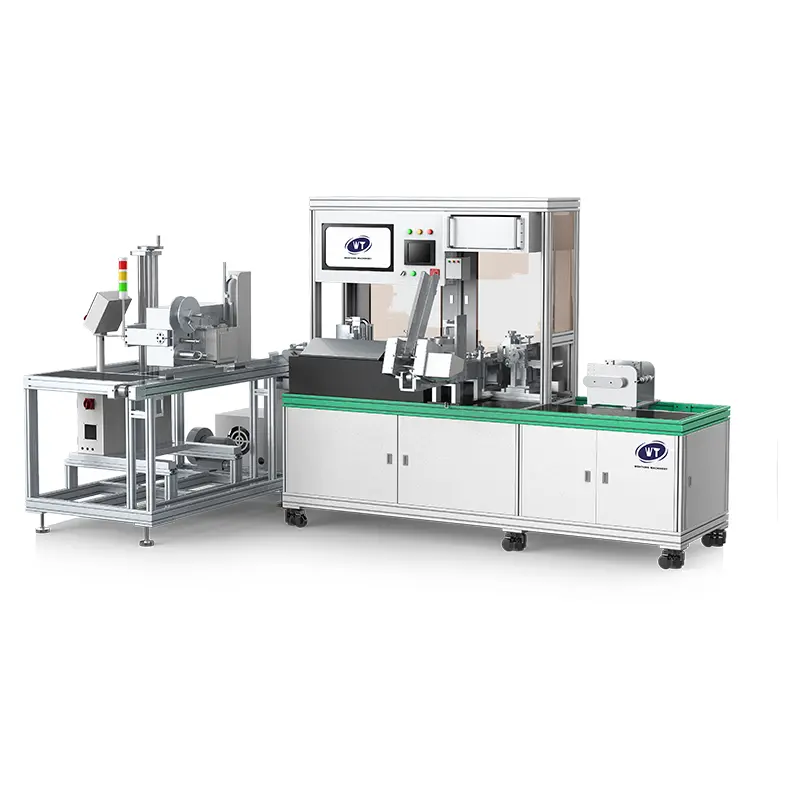

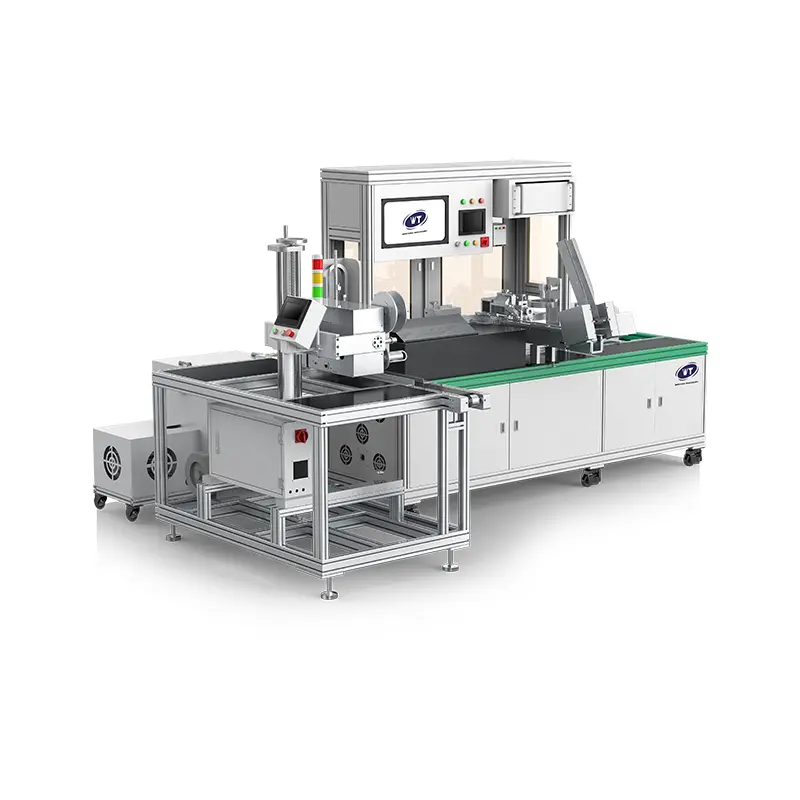

WT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics. It is suitable for packaging various standard cards, such as prepaid cards, game cards, IC cards, SIM cards.

Finished Product Sample

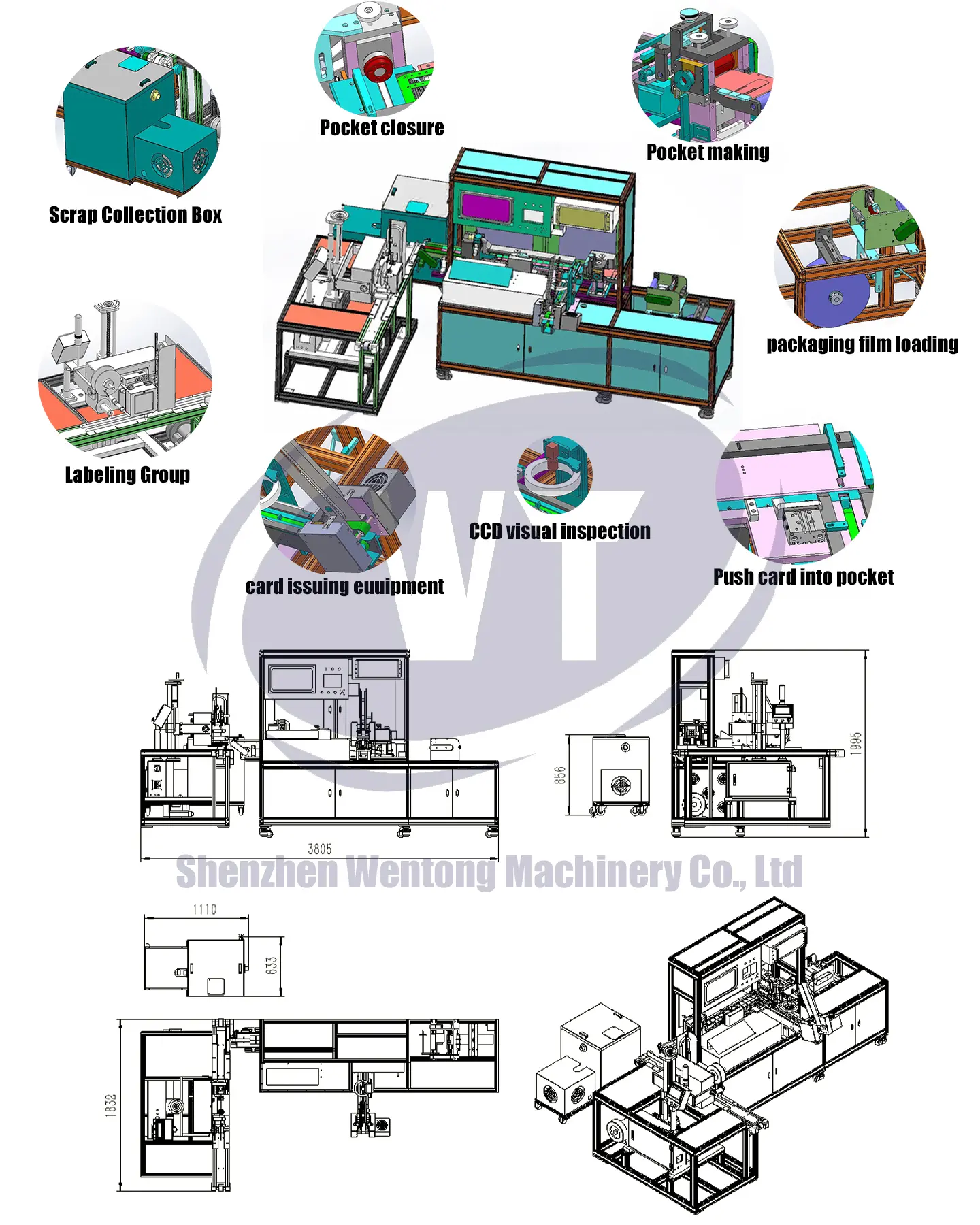

Combining functions of film unwinding, card feeding, card packaging, and card collection;
Suitable for paper cards and PVC cards with thickness over 0.15mm;
Utilizing BOPP film with thickness over 0.025mm;
Ultrasonic sealing process provides high operation speed and reliable closure;
Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
Machine vision inspection system is optional, it can inspect and read serial number and bar-code of cards;

Technical Parameters

Power supply	AC 380V/50 HZ	Card size	Thickness 0.25mm~1.00mm (standard card)
Total power	3.0KW	Control	PLC control + servo system
Air source	6 kg/cm2	Operators needed	1
Air consumption	Approx. 30L/min	Dimension	L4800W980H1860MM
Packaging film material	BOPP film, OPP film, PLA film etc.	Packaging film thickness	0.025mm~0.05mm
Sealing method	Ultrasonic sealing	Productivity	30000PCS/H
Card materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.	Productivity	30000PCS/H

The fully automatic packaging machine played an important role in the modern manufacturing and packaging industry with its efficient, intelligent, secure, and stable characteristics. It not only improves production efficiency and product quality, but also reduces artificial errors and packaging costs, and provides strong support for the development and competitiveness of enterprises.

Frequently Asked Questions (FAQ)

1. What types of cards can the WT-008BZJ packaging machine handle?

The machine is designed to package various standard cards, including prepaid cards, game cards, IC cards, and SIM cards. It is compatible with paper and PVC cards with a thickness of over 0.15mm.

2. What are the benefits of the ultrasonic sealing technology used in this machine?

Ultrasonic sealing offers significantly increased seal strength and improved packaging aesthetics. It ensures a highly reliable closure at fast operating speeds without damaging the card materials.

3. What is the maximum production speed of this card packaging machine?

Thanks to its dual sealing molds and high-efficiency automation, the machine can achieve a productivity rate of up to 30,000 pieces per hour (30,000 PCS/H).

4. What packaging film materials and thicknesses are compatible?

The machine utilizes BOPP film, OPP film, PLA film, and other standard packaging films with a thickness ranging from 0.025mm to 0.05mm.

5. How does the machine handle errors like card shortages or double feeds?

It features an automatic inspection system that continuously monitors for card shortages and double pieces in each package. If any fault is detected, the machine immediately stops and triggers an alarm to prevent waste.

6. Can the machine read and inspect card barcodes and serial numbers?

Yes, an optional machine vision inspection system can be integrated into the workflow to automatically inspect, read, and verify the serial numbers and barcodes of the cards during packaging.
