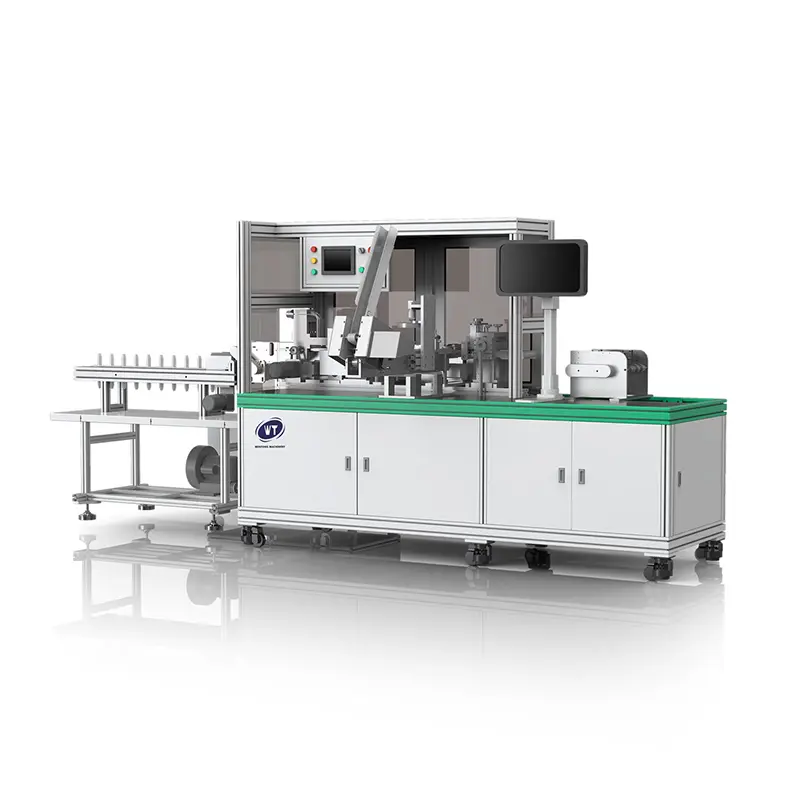

WT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics. It is suitable for packaging various standard cards, such as prepaid cards, game cards, IC cards, SIM cards.
- Combining functions of film unwinding, card feeding, card packaging, and card collection;
- Suitable for paper cards and PVC cards with thickness over 0.15mm;
- Utilizing BOPP film with thickness over 0.025mm;
- Ultrasonic sealing process provides high operation speed and reliable closure;
- Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
- Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
- Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
- Machine vision inspection system is optional, it can inspect and read serial number and bar-code of cards;
| Power Supply |
AC 380V/50 HZ |
Card size |
Full Cards/Half Cards/Quarter Cards/Leaflet |
| Total Power |
3.0KW |
Control |
PLC control + Servo system |
| Air Source |
6 kg/cm2 |
Operators |
1 |
| Air Consumption |
Approx. 30L/min |
Dimension |
L3890*W1260*H1750MM |
| Packaging Film |
BOPP film, OPP film, PLA film, etc. |
Packaging film thickness |
0.025mm~0.05mm |
| Sealing Method |
Ultrasonic sealing |
Productivity |
12000PCS/H |
| Card materials |
Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
Full-automatic packaging machine is an efficient and intelligent packaging equipment, which has an important position in the modern manufacturing and packaging industry. Through advanced automation technology and intelligent control systems, it realizes the automatic packaging, packaging and logo of the product, which greatly improves the efficiency and quality of packaging production.
Improve production efficiency: The automatic packaging machine can achieve continuous and high-speed packaging processes, which greatly improves the efficiency of packaging production. Compared to artificial packaging, the fully automatic packaging machine can quickly complete the packaging task, saving a lot of time and human resources.
Frequently Asked Questions
Q1: What types of cards can the WT-008BZJ package?
It is ideal for prepaid cards, game cards, IC cards, SIM cards, and various standard paper or PVC cards with a thickness over 0.15mm.
Q2: What is the benefit of ultrasonic sealing in this machine?
Ultrasonic sealing offers increased seal strength, improved aesthetics, and allows for high operation speeds compared to traditional heat sealing.
Q3: Does the machine support continuous strip packaging?
Yes, the machine supports both individual card packaging and continuous strip packaging. The quantity of cards in each collection section can be pre-set.
Q4: What happens if there is a card shortage or double-feeding?
The machine features an automatic inspection system. If it detects a card shortage or double pieces, it will immediately stop and actuate an alarm.
Q5: What is the maximum production capacity?
The WT-008BZJ has a high productivity rate of up to 12,000 pieces per hour (12000PCS/H).
Q6: Are there any optional features for quality control?
Yes, a machine vision inspection system is optional. It can be integrated to inspect and read serial numbers and barcodes on the cards during the process.
