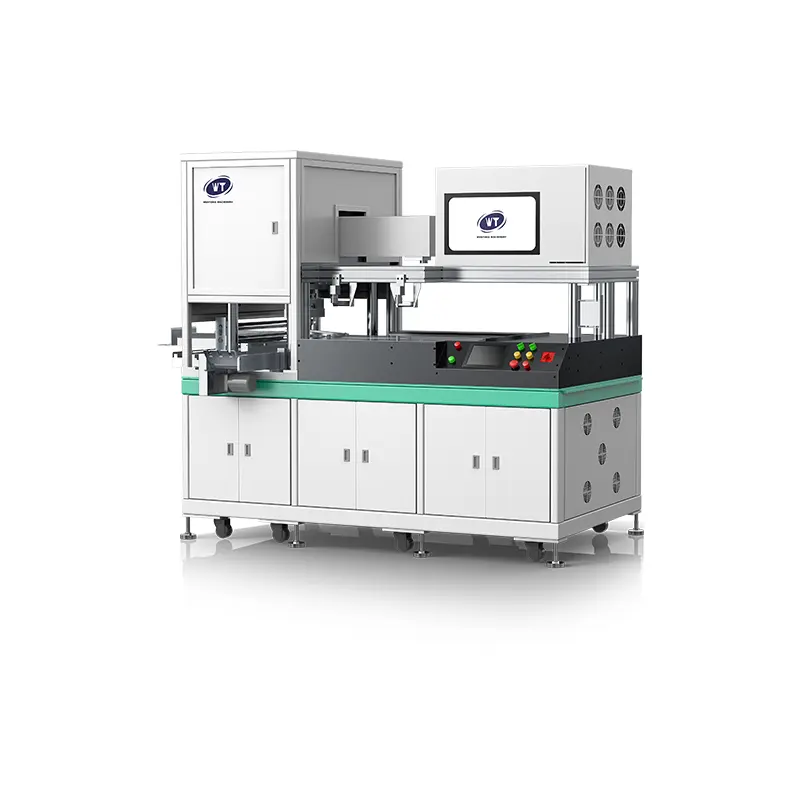

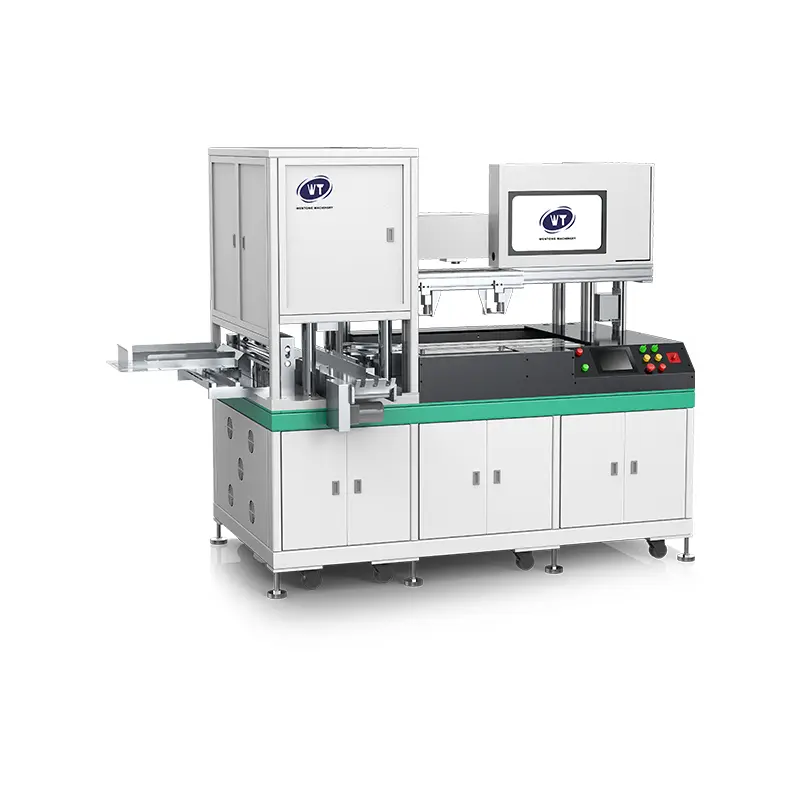

The small card cutting die cutting machine is designed to punch cards of various materials including paper, PVC, ABS, PET, etc. It is suitable for manufacturing card sizes ranging from 20*20mm to 210*210mm. Sheets are aligned and positioned bi-directionally by X and Y axes, enabling the card shapes and round corners to be punched and formed in one step. This card punching machine can automatically accomplish punched card collection and scrap removal.
OMRON sensor works with feeding module for high accuracy of sheet position. Position parameter is adjustable, and the accuracy can reach ±0.10mm.

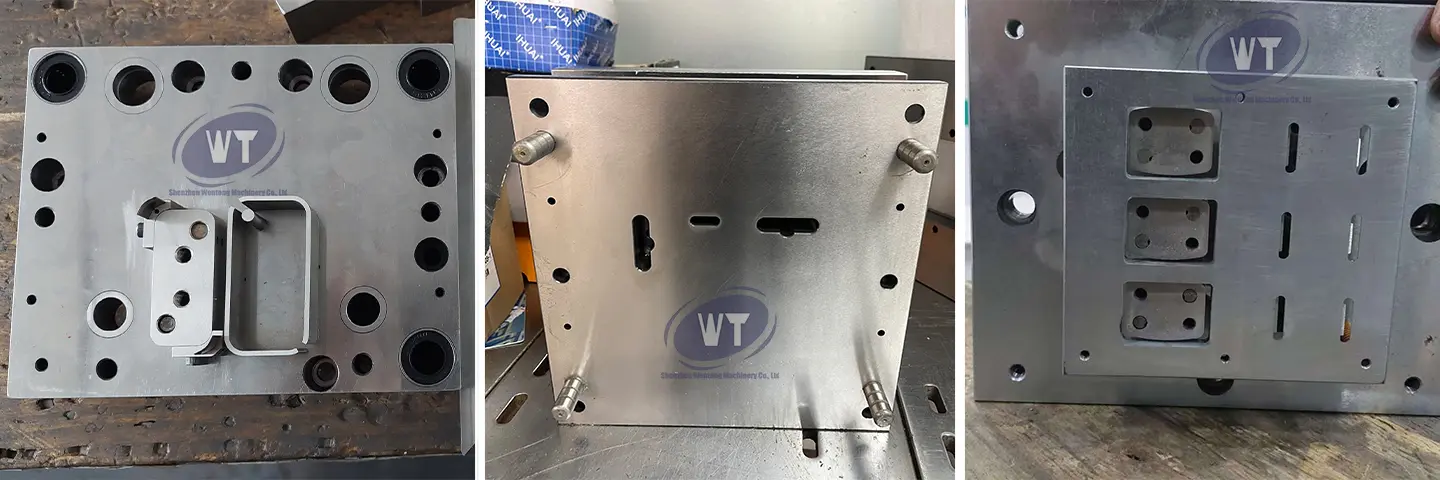

Punching pressure and speed can be easily adjusted to accommodate cards of diverse materials and thicknesses. Quick tool changing can be achieved when cards are varying.
Specially designed card collection unit automatically stacks and collects cards in an orderly manner, eliminating the need for secondary sorting.
PLC control system automatically monitors machine running status. The machine will immediately stop and actuate an alarm in the event of abnormal operation.

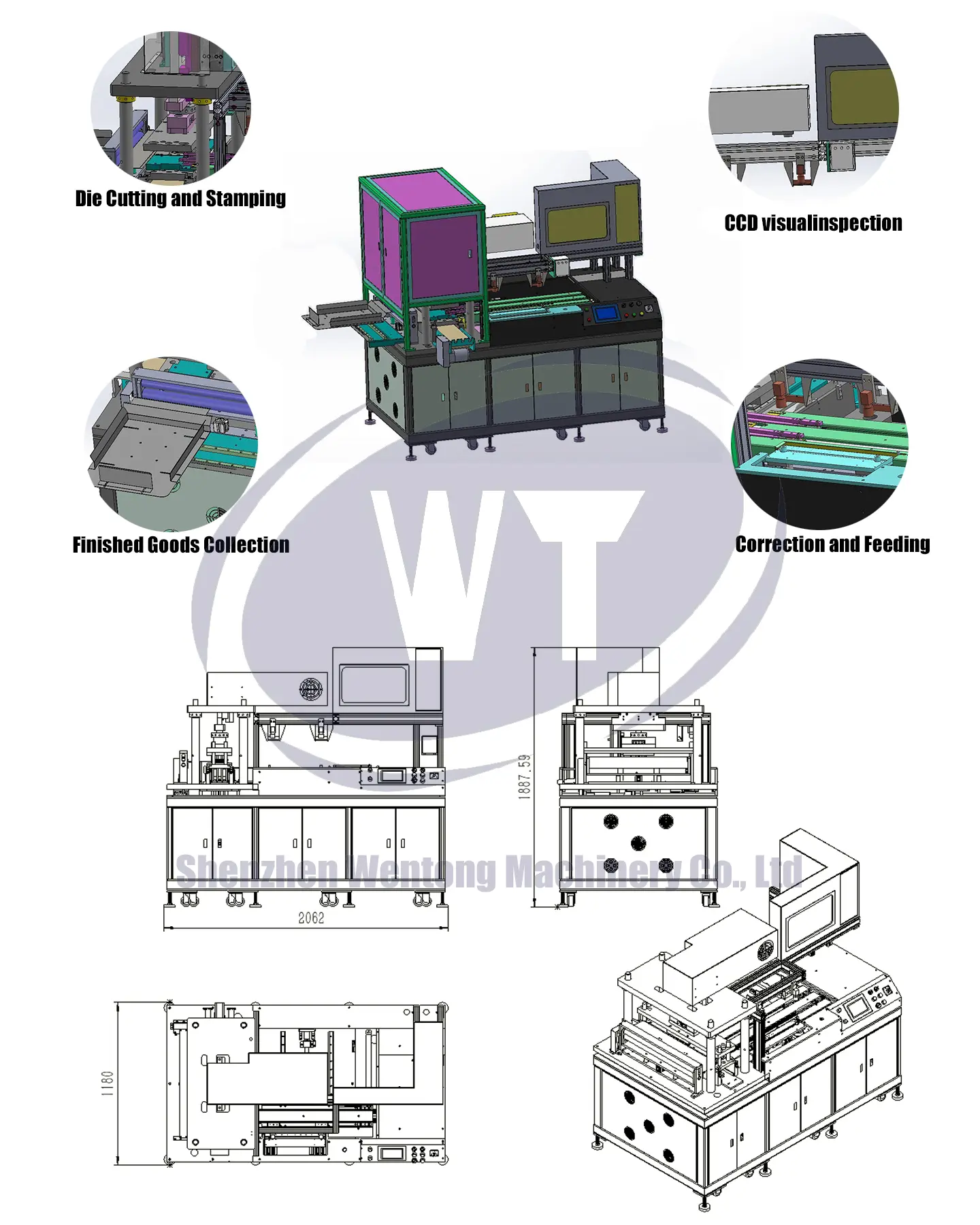

| Power supply | AC 380V/50 HZ | Sheet format | Max. 1000*700MM Min. 550*450MM |
| Total power | 6.5KW | Control | PLC control + servo system |
| Air source | 6 kg/cm² | Operators needed | 1 |
| Air consumption | Approx. 80L/min | Dimension | L2100*W1180*H1850MM |
| Punching pressure | 2T-6T | Drive | Servo system |
| Weight | Approx. 800KG | Punched card size | Max. 210*210MM Min. 20*20MM |
| Punching accuracy | ±0.10mm | Productivity | 15000~30000 PCS/H |
| Applicable card materials | Paper card, PVC, ABS, PET, PP, etc. | ||
The function of a card cutting machine is to improve production efficiency. In traditional manual cutting methods, workers use knives to cut cards by hand, which is inefficient and prone to inaccurate cuts and uneven edges. With the advent of card cutting machines, the cutting process of cards has been automated, greatly improving production efficiency and saving labor and time costs.
The machine is designed to punch cards from a wide range of materials, including paper cards, PVC, ABS, PET, PP, and other similar materials.
It is highly versatile and suitable for manufacturing card sizes ranging from a minimum of 20*20mm up to a maximum of 210*210mm.
Sheets are aligned and positioned bi-directionally along the X and Y axes. An OMRON sensor works in tandem with the feeding module to deliver an exceptional positioning accuracy of ±0.10mm.
The machine offers high-speed productivity, capable of processing between 15,000 and 30,000 pieces per hour (PCS/H) depending on the material and configuration.
The machine features a specially designed card collection unit that automatically stacks and collects finished cards in an orderly manner, eliminating the need for secondary sorting. Scrap removal is also fully automated.
It is equipped with an advanced PLC control system that automatically monitors the running status. In the event of any abnormal operation, the machine will immediately stop and actuate an alarm to ensure safety.
