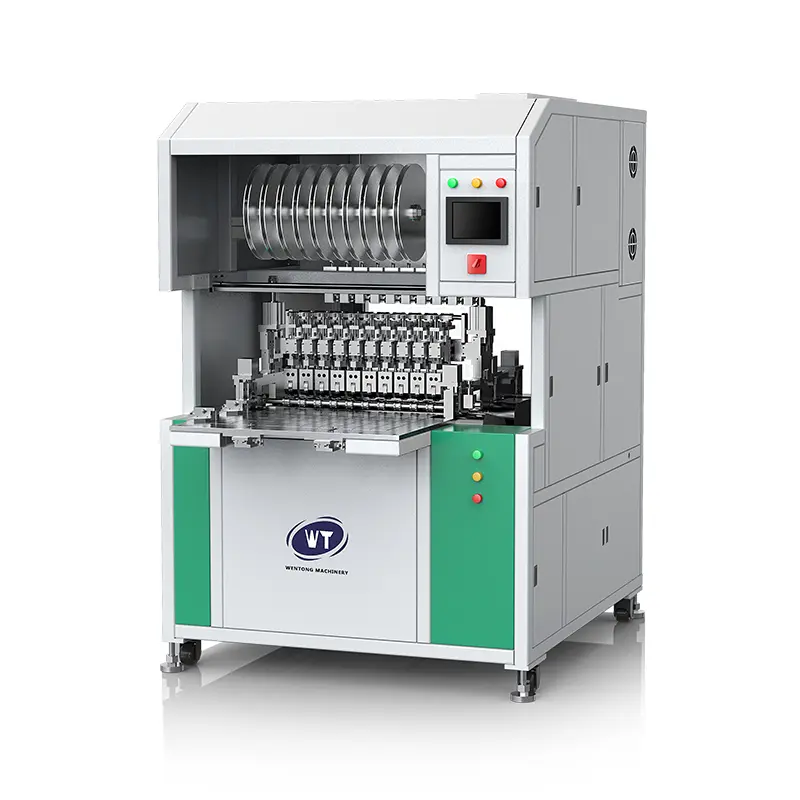

Custom Magnetic tape laying machine Manufacturer, Factories

Applicable materials paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Â
This machine is suitable for hot stamping magnetic strips on sheets.
Â
After the equipment is started, manual loading is required.

Send Inquiry

Product Description

This automatic magnetic tape laying machine is typically designed for laying magnetic strips onto card sheet materials. The pressure and heat are used in magnetic tape laying process, the temperature of laying rollers is independently controlled for an optimal laying result.

Key Product Features

✓
Servo motor driven roller conveys sheets, offering precise sheet feeding and adjustable feeding speed.
✓
Independent temperature control and programmable logic controller (PLC) configuration.
✓
Multi laying rollers with adjustable pressure ensure consistent and optimal laying results.
✓
Pressure and temperature of each individual laying roller are separately controlled.

Finished Cards Sample

Technical Parameters

Parameter Specification	Value details	Parameter Specification	Value details
Power supply	AC 380V/50 HZ	Format	3X8/4X8/5X5/5x6/8x8 optional
Total power	2.5KW	Control	PLC control + servo system
Air source	6 kg/cm²	Operators needed	1
Air consumption	Approx. 80L/min	Dimension	L2250 * W1000 * H1700 MM
Laying accuracy	±0.15mm	Product thickness	0.2mm ~ 1.0mm
Temperature control accuracy	±2℃	Temperature control range	0 ~ 400℃
Magnetic tape width	6.35mm / 8.4mm / 12.7mm	Quantity of magnetic tapes	5 ~ 12
Applicable materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Productivity	900 Sheet/H

automatic magnetic tape laying machine overlay processing

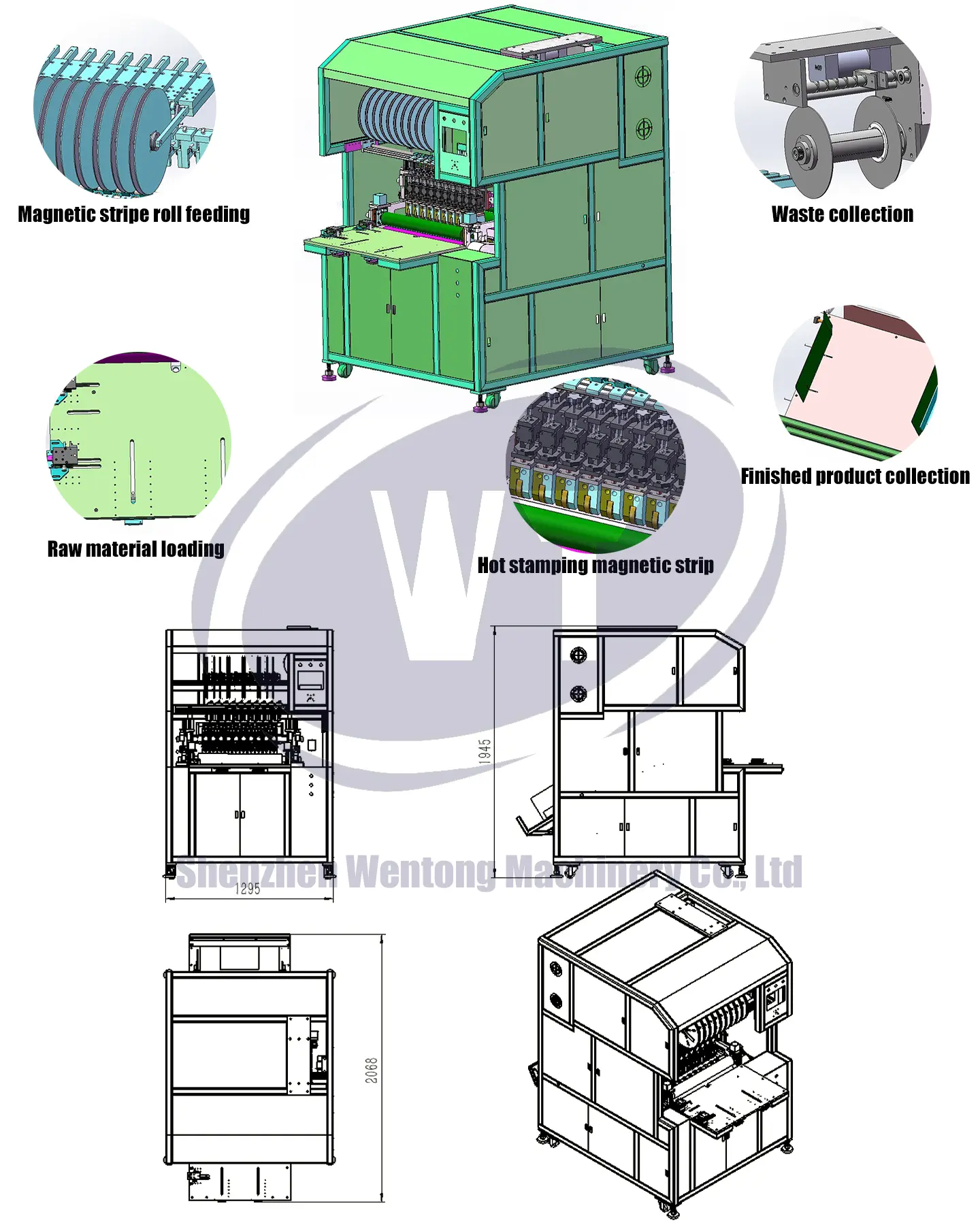

Laying System Process Display

The machine automatically lays rolls of magnetic tapes onto overlay material. Using heat and pressure, the magnetic tape is bonded to the overlay material, while the backing foil is rewound to a single rewind stand after the laying process. The machine can be built to operate for roll to roll or roll to sheet application. When operating roll to roll, the overlay is rewound after the tape is laid. When operating roll to sheet, after the tape is laid, the material is cut to the desired length with a guillotine. The material thickness of roll overlay material can range from 0.2~1.0mm.

Frequently Asked Questions (FAQ)

What is the primary application of the automatic magnetic tape laying machine?

The machine is designed to automatically lay rolls of magnetic tape strips onto card overlay and sheet materials such as PVC, ABS, PET, paper cards, and PVC/ABS composite materials.

What are the supported processing layouts and configurations?

It offers highly versatile layout configurations including format options like 3x8, 4x8, 5x5, 5x6, and 8x8 to accommodate various card sheet production requirements.

Can the machine operate with both roll-to-roll and roll-to-sheet settings?

Yes. The machine supports dual-setup configurations. It can wind up overlay rolls seamlessly (roll-to-roll) or precisely slice the overlay to standard lengths with a built-in guillotine cutting unit (roll-to-sheet).

What is the laying accuracy and speed performance?

The machine provides a high precision laying accuracy of ±0.15mm and delivers outstanding productivity of approximately 900 sheets per hour.

How are roller temperatures and pressure adjustments managed?

The machine utilizes independent temperature control systems for each individual laying roller (ranging from 0~400℃ with an accuracy of ±2℃). Multi-roller systems also feature adjustable pressure bounds to ensure flawless heat-bonding results.

What sizes and thicknesses of materials can be processed?

The machine supports sheet thicknesses ranging from 0.2mm to 1.0mm, and matches magnetic tape strip widths of 6.35mm, 8.4mm, and 12.7mm, laying 5 to 12 strips simultaneously.
