  • Applicable materials paper card, PVC, ABS, PET, PVC/ABS composite materials and film materials.
  •
  • The machine is available with an optional rewinding stand for the roll-to-roll laying process.
  •
  • After the equipment is started, no one is required to watch over it. It will automatically complete the laying of the tape and the collection of the finished products.



Send Inquiry

Product Description

Our automatic magnetic tape laying machine is typically designed for laying magnetic strips onto film or card sheet materials. The pressure and heat are used in magnetic tape laying process, the temperature of laying rollers is independently controlled for an optimal laying result.

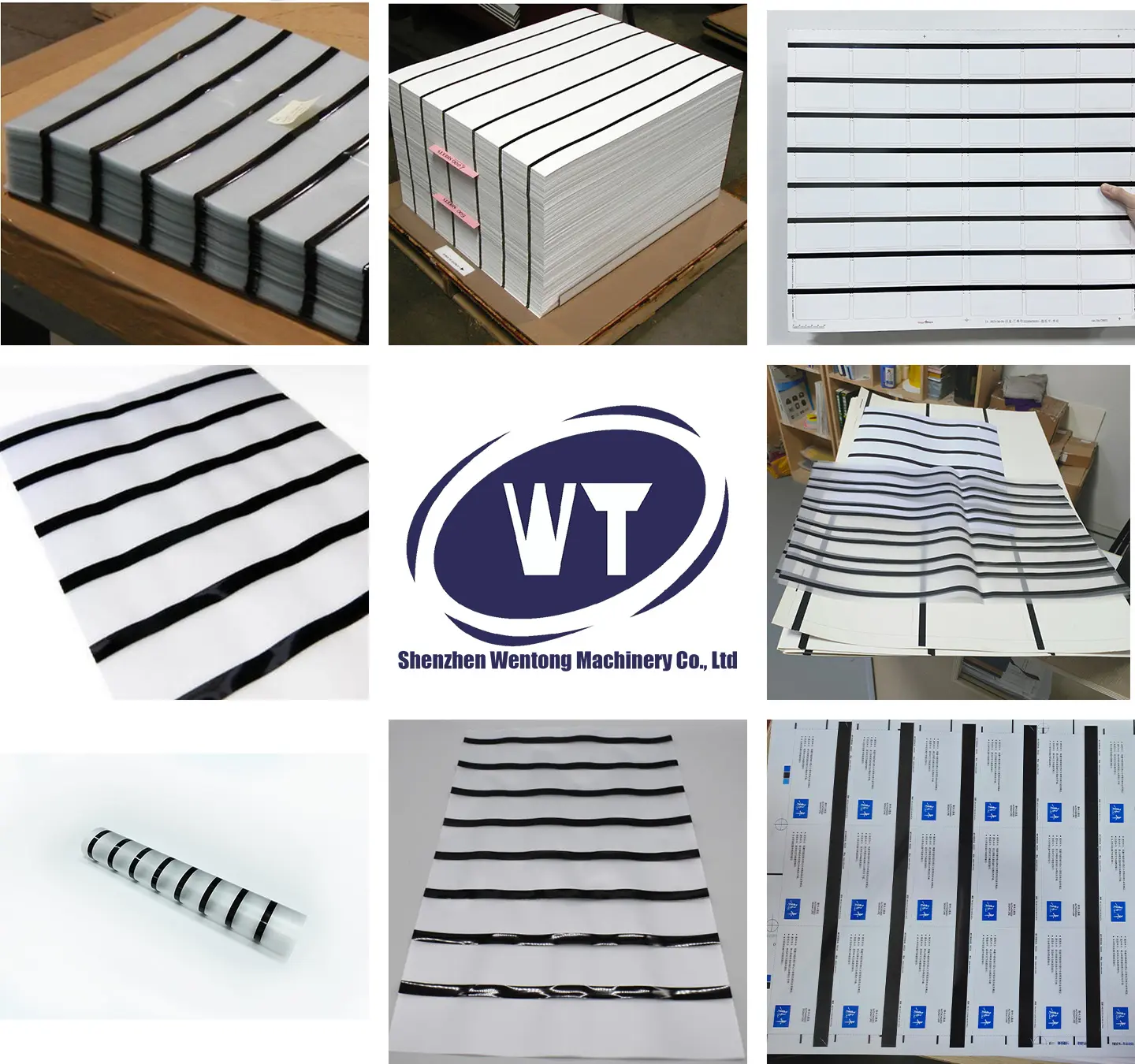

Finished Cards Sample
automatic magnetic tape laying machine sample
Key Features
1 Servo motor driven roller conveys sheets, offering precise sheet feeding and adjustable feeding speed.
2 Independent temperature control and PLC control system for stable operation.
3 Multi laying rollers with adjustable pressure ensure optimal laying results across different materials.
4 The pressure and temperature of each individual laying roller are independently controlled for maximum precision.
Technical Parameters
Power Supply AC 380V/50 HZ Format 3X8/4X8/5X5/5x6/8x8 optional
Total Power 2.5KW Control PLC control + servo system
Air Source 6 kg/cm2 Operators Needed 1
Air Consumption Approx. 80L/min Dimension L2250*W1000*H1700MM
Laying Accuracy ±0.15mm Product Thickness 0.2mm ~ 1.0mm
Temp. Control Accuracy ±2℃ Temp. Control Range 0 ~ 400℃
Magnetic Tape Width 6.35mm / 8.4mm / 12.7mm Quantity of Tapes 5 ~ 12
Applicable Materials Paper card, PVC, ABS, PET, Composite materials, etc. Productivity 900 Sheet/H
Functional Overview

The machine automatically lays rolls of magnetic tapes onto overlay material. Using heat and pressure, the magnetic tape is bonded to the overlay material, while the backing foil is rewound to a single rewind stand after the laying process.

The machine can be built to operate for roll to roll or roll to sheet application. When operating roll to roll, the overlay is rewound after the tape is laid. When operating roll to sheet, the material is cut to the desired length with a high-precision guillotine. The material thickness of roll overlay material can range from 0.04mm to 0.08mm.

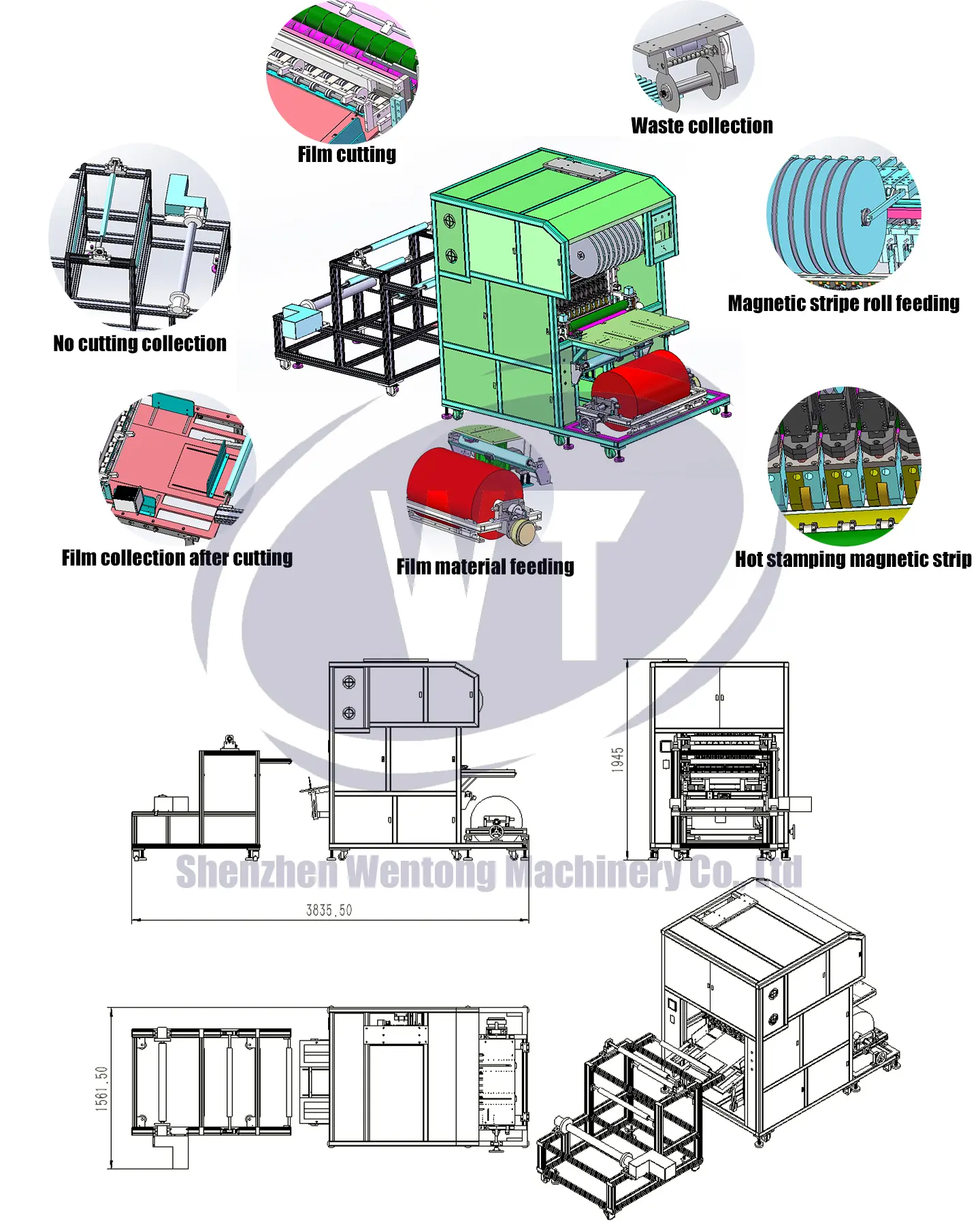

magnetic tape laying machine details
FAQ - Frequently Asked Questions
1. What materials are compatible with this magnetic tape laying machine? The machine is compatible with a wide range of materials including Paper cards, PVC, ABS, PET, and PVC/ABS composite materials.
2. Can I adjust the number of magnetic tapes applied simultaneously? Yes, the machine supports the application of 5 to 12 magnetic tapes at once, depending on your configuration requirements.
3. How precise is the tape laying process? The machine offers high precision with a laying accuracy of ±0.15mm and a temperature control accuracy of ±2℃.
4. What is the difference between Roll-to-Roll and Roll-to-Sheet modes? In Roll-to-Roll mode, the material is rewound after tape application. In Roll-to-Sheet mode, the material is automatically cut to your specified length using an integrated guillotine.
5. Does the machine require multiple operators? No, the machine is designed for efficiency and only requires one operator to manage the PLC-controlled system.
6. Is the temperature of the rollers adjustable? Yes, the temperature of each laying roller is individually controlled within a range of 0 to 400℃ to ensure perfect bonding for different materials.
