High-Quality Automatic magnetic stripe laying machine Manufacturers, Supplier

Applicable materials paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Â
The device is used in chip-to-chip production scenarios.
Â
After the equipment is started, the feeding action is completed automatically without manual loading.

Send Inquiry

Product Description

This automatic magnetic tape laying machine is typically designed for laying magnetic strips onto card sheet materials. The pressure and heat are used in magnetic tape laying process, the temperature of laying rollers is independently controlled for an optimal laying result.

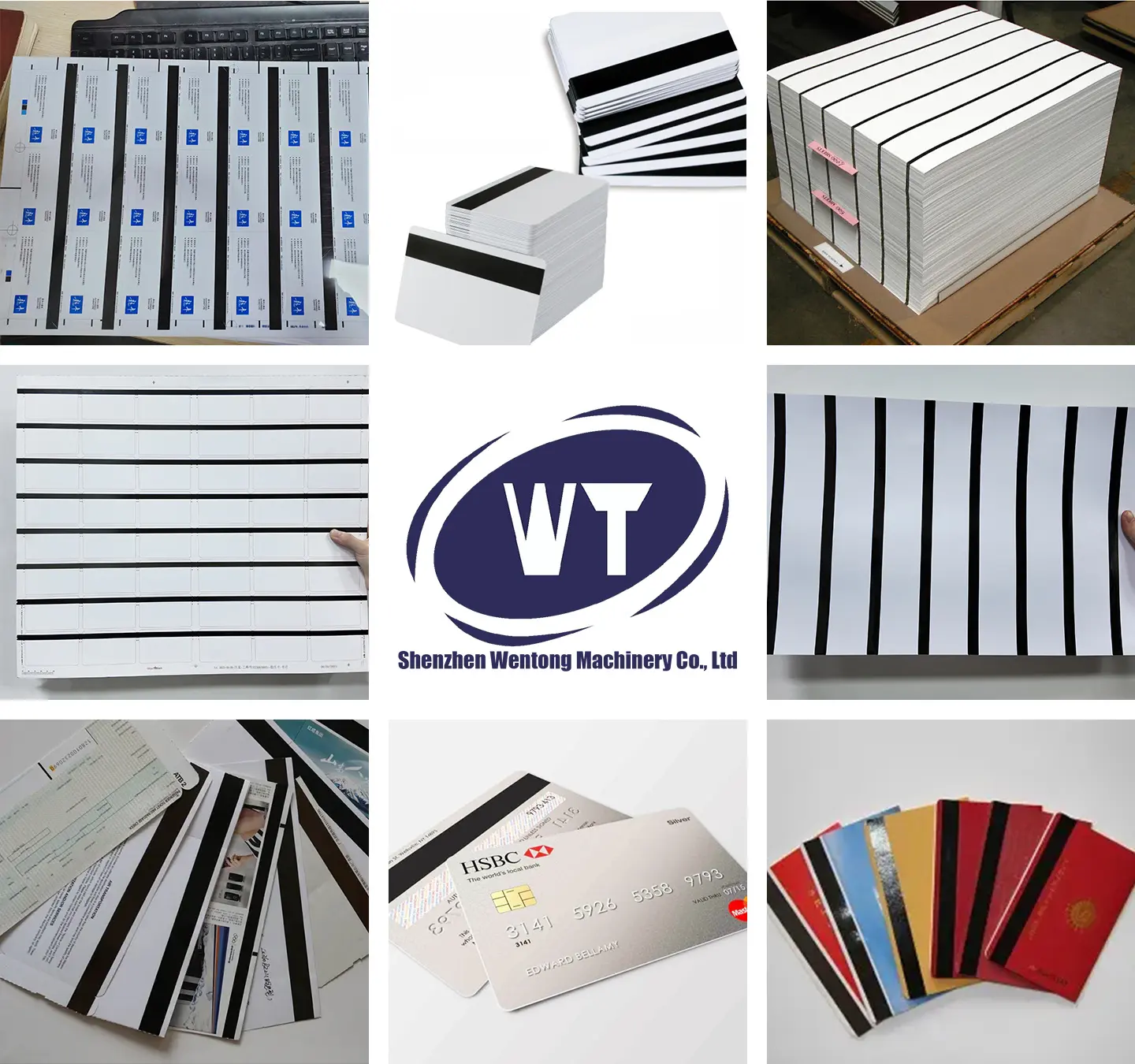

Finished Cards Sample

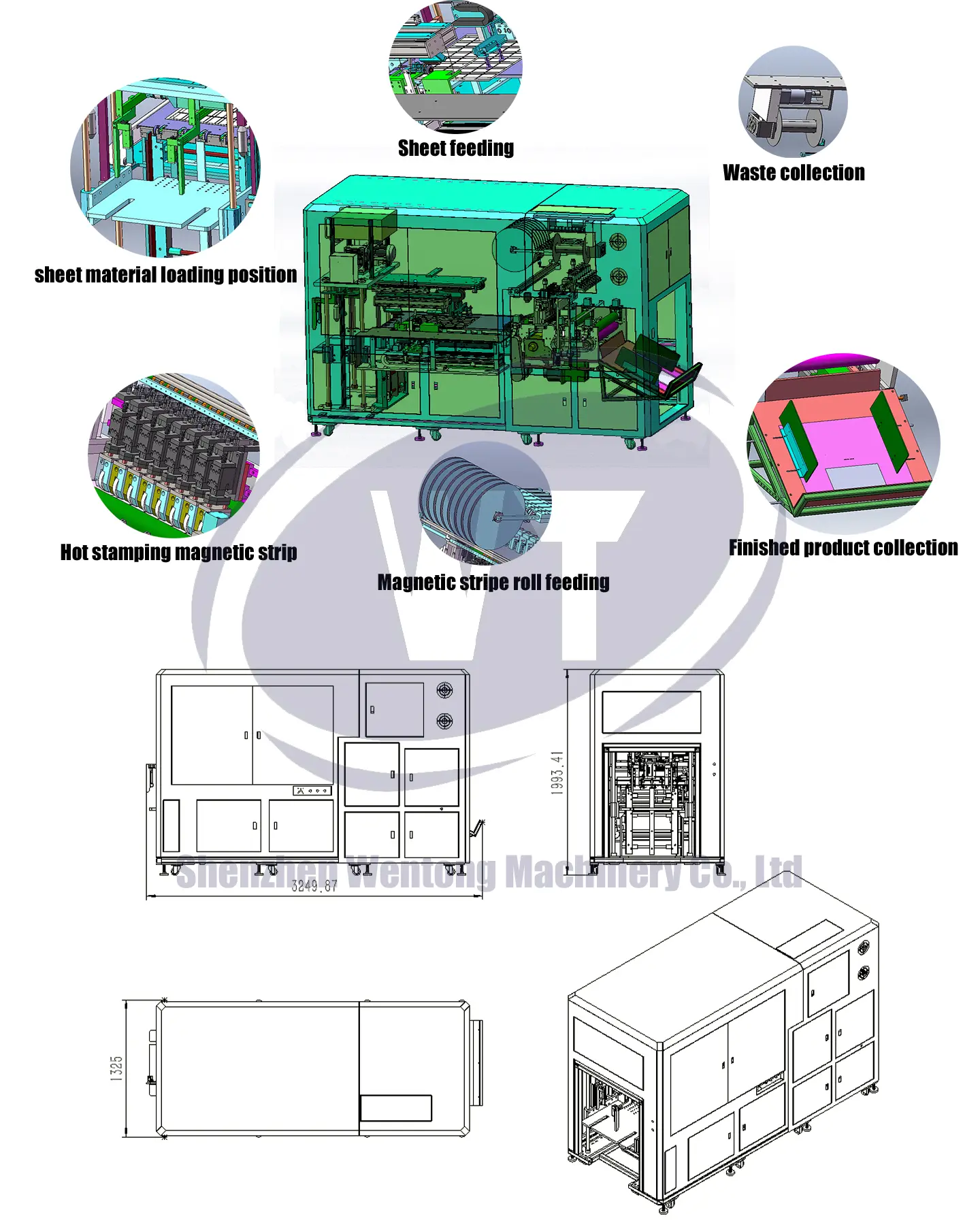

Automatic magnetic stripe laying machine

Precise Feeding Control: Servo motor driven roller conveys sheets, offering precise sheet feeding and adjustable feeding speed.
Smart Automation: Independent temperature control and PLC control.
Optimal Results: Multi laying rollers with adjustable pressure ensure optimal laying result.
Individual Adjustments: Pressure and temperature of each laying roller are individually controlled.

Technical Parameters

Power supply	AC 380V/50 HZ	Format	Max Sheet Width 580mm
Total power	10KW	Control	PLC control + servo system + camera system
Air source	6 kg/cm²	Operators	1
Air consumption	Approx. 80L/min	Dimension	L3300 * W1400 * H1950MM
Laying accuracy	±0.10mm	Product thickness	0.2mm ~ 1.0mm
Temperature control accuracy	±2℃	Temperature control range	0 ~ 400℃
Magnetic tape width	6.35mm / 8.4mm / 12.7mm	Quantity of magnetic tapes	3 ~ 10
Applicable materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.	Productivity	300 ~ 600 Sheet/H

The machine automatically lays rolls of magnetic tapes onto overlay material. Using heat and pressure, the magnetic tape is bonded to the overlay material, while the backing foil is rewound to a single rewind stand after the laying process. The machine can be built to operate for roll to roll or roll to sheet application. When operating roll to roll, the overlay is rewound after the tape is laid. When operating roll to sheet, after the tape is laid, the material is cut to the desired length with a guillotine. The material thickness of roll overlay material can range from 0.2~1.0mm.

Frequently Asked Questions (FAQ)

Q What is the main application of this automatic magnetic tape laying machine?

This machine is specifically designed for laying magnetic strips onto card sheet materials like paper cards, PVC, ABS, PET, and PVC/ABS composite materials.

Q How does the machine ensure highly precise sheet feeding?

It features a precise feeding system powered by a servo motor driven roller, which ensures accurate sheet conveying and allows for fully adjustable feeding speeds.

Q Can the temperature and pressure be adjusted for individual laying rollers?

Yes, both the laying pressure and temperature of each individual laying roller are independently controlled, allowing for optimal customized laying results depending on your specific requirements.

Q Does this machine support both roll-to-roll and roll-to-sheet workflows?

Yes, the machine can be customized and built to operate in either roll-to-roll mode (where the overlay is rewound after tape application) or roll-to-sheet mode (where the material is automatically cut to length using a guillotine).

Q What are the material thickness limits and productivity rates?

It supports overlay materials with thicknesses ranging from 0.2mm to 1.0mm. The machine is highly efficient, featuring an average productivity rate of 300 to 600 sheets per hour.

Q What is the accuracy of the laying process?

With advanced PLC control and high-end camera & servo systems, the machine maintains a remarkably tight laying accuracy limit of ±0.10mm.
