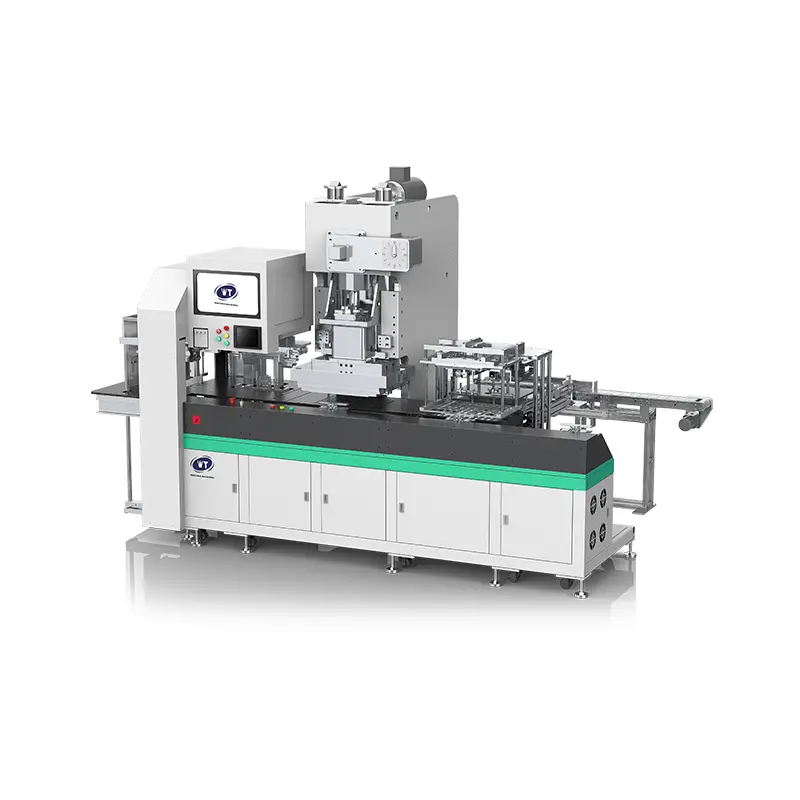

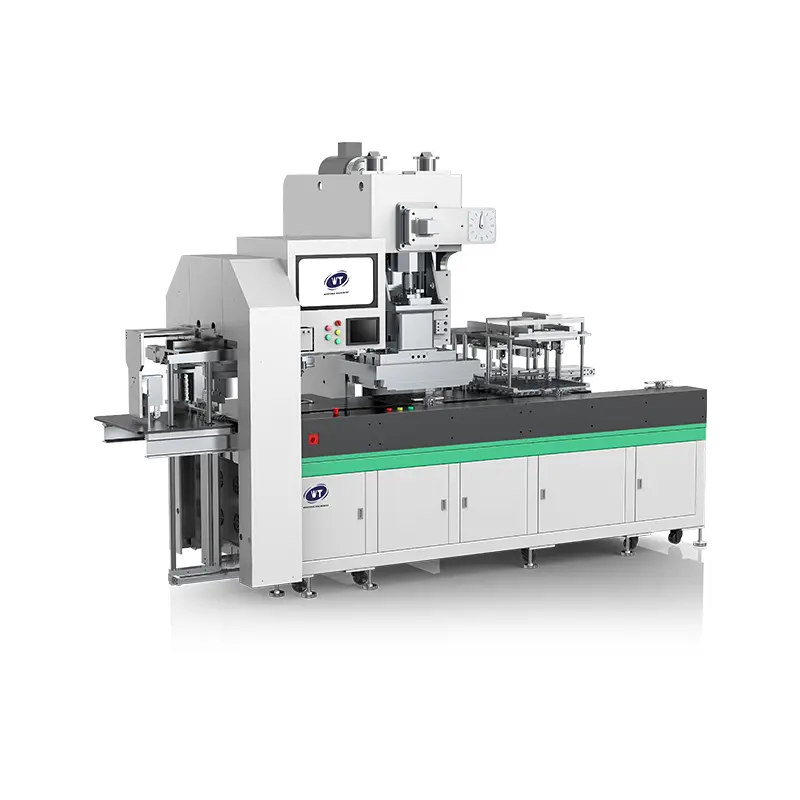

Full page die cutting machine is designed for die cutting of Fridge Magnets, Soft Magnetic Disk, Calendar Refrigerator Sticker, Car Sticker, etc. It is capable of accomplishing precise feeding, automatic collection and scrap removal.
Coupled with vacuum suction cups and stepper motor, the sheet feeder can implement automatic suction and feeding process seamlessly.
After sheets are fed to designated position by motor driven conveying belt, vision system provides automatic alignment and ensures accurate positioning.
High torque servo motor is adopted to guarantee stable work pressure and low noise level, with an adjustable working speed.
Specially designed card collecting structure allows punched cards to be automatically collected in an orderly manner, while cutting scraps are automatically removed, eliminating the need for secondary sorting.

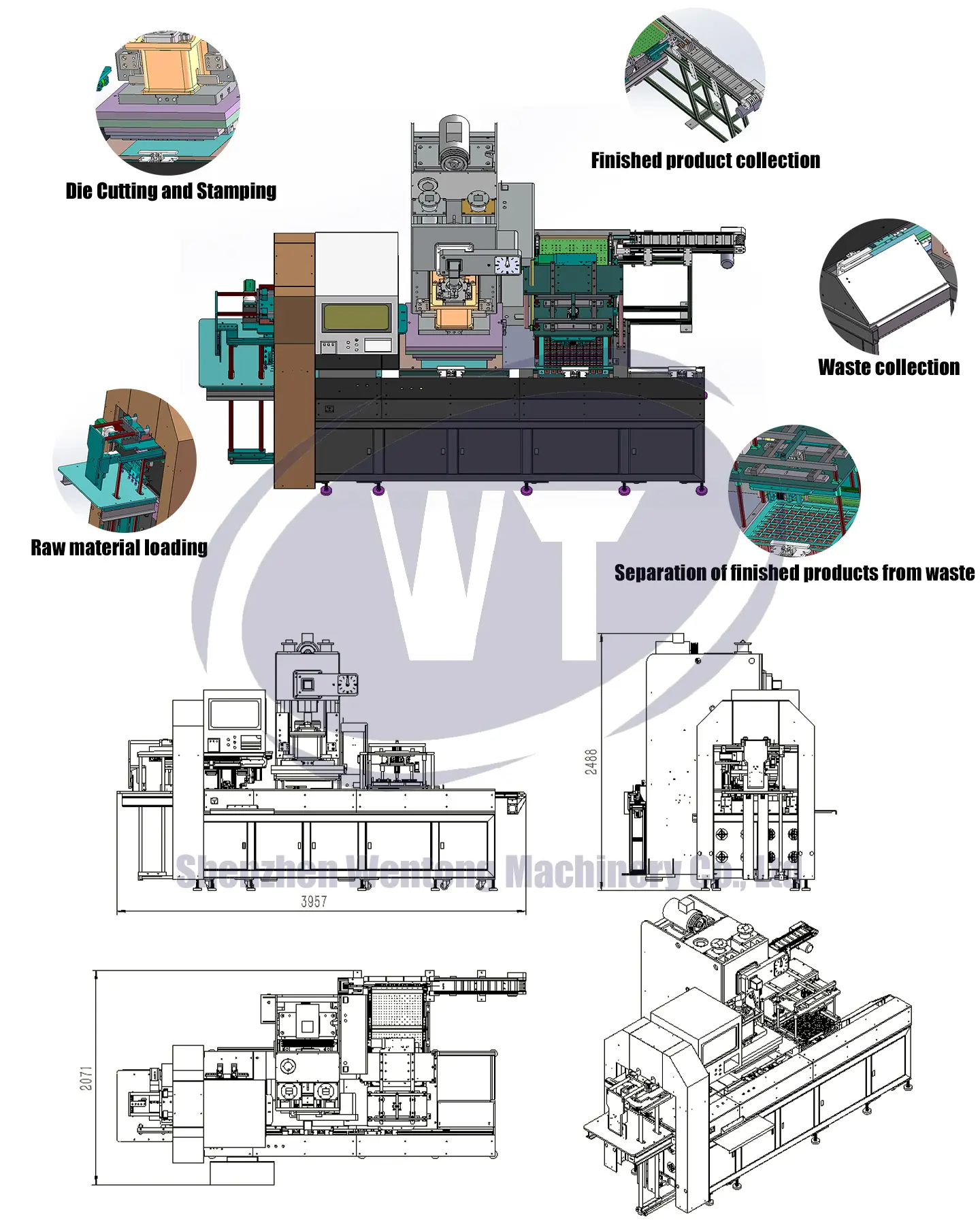

| Power Supply | AC 380V/50 HZ | Cutting Tools | Wood cutting tools |
| Total Power | 7.5 KW | Control | PLC control + servo system |
| Cutting Pressure | 35T | Operators Needed | 1 |
| Cutting Accuracy | ±0.10 mm | Dimension | L3500*W1850*H2400 MM |
| Weight | 3500 KG | Sheet Size | 450*320 mm |
| Product Types | Fridge Magnets, Soft Magnetic Disk, Calendar Refrigerator Sticker, Car Sticker | Productivity | 1000~1200 sheet/H |
Die cutting helps you cut shapes much quicker than cutting by hand. Because of this, your efforts are reserved, and you become more efficient with time!
Using a craft cutting machine gives the advantage of cutting and layering multiple shapes together. Because of this, you can arrange your die shapes close to each other to utilize your paper or cardstock fully. Less paper wasted, more designs created!
It is specifically optimized for cutting high-demand products like Fridge Magnets, Soft Magnetic Disks, Calendar Refrigerator Stickers, Car Stickers, and similar flexible items.
The machine delivers a high cutting accuracy of ±0.10 mm, achieved through a vision system that automatically aligns sheets once they reach the designated position.
Yes, it features an integrated collection unit that automatically separates the cut shapes from scrap material, removing the need for manual secondary sorting.
The total system power is 7.5 KW, working with an AC 380V/50 HZ power supply. It exerts a robust cutting pressure of 35T using a low-noise, high-torque servo motor.
Depending on materials and layout, the machine can process approximately 1000 to 1200 sheets per hour, greatly accelerating your production timelines.
