| Power supply | AC 380V/50 HZ | Sheet format | 5X5/5X6/3X8/4X8/6x8/8x8 optional |
| Total power | 12KW | Control | PLC control + servo system |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 150L/min | Dimension | L2800*W2750*H1700MM |
| Punching pressure | 2T-6T | Drive | Servo system |
| Weight | Approx. 1800KG | Punched card size | Customizable |
| Punching accuracy | ±0.10mm | Productivity | 20000~55000PCS/H |
| Applicable card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. | ||
The card cutting machines are also widely used in the advertising industry. During the production of advertising materials, it is often necessary to cut advertising materials to meet the size and shape requirements of advertisements.
The high precision and high-speed cutting features of card cutting machines allow advertising production companies to quickly and mass-produce advertising products that meet requirements, improving production efficiency and ensuring advertising quality.
The high precision and high-speed cutting features of card cutting machines allow printing companies to quickly and mass-produce printed materials that meet requirements, improving production efficiency and reducing production costs.
The machine is highly versatile and compatible with a wide range of materials, including paper cards, PVC, ABS, PET, and PVC/ABS composite materials.

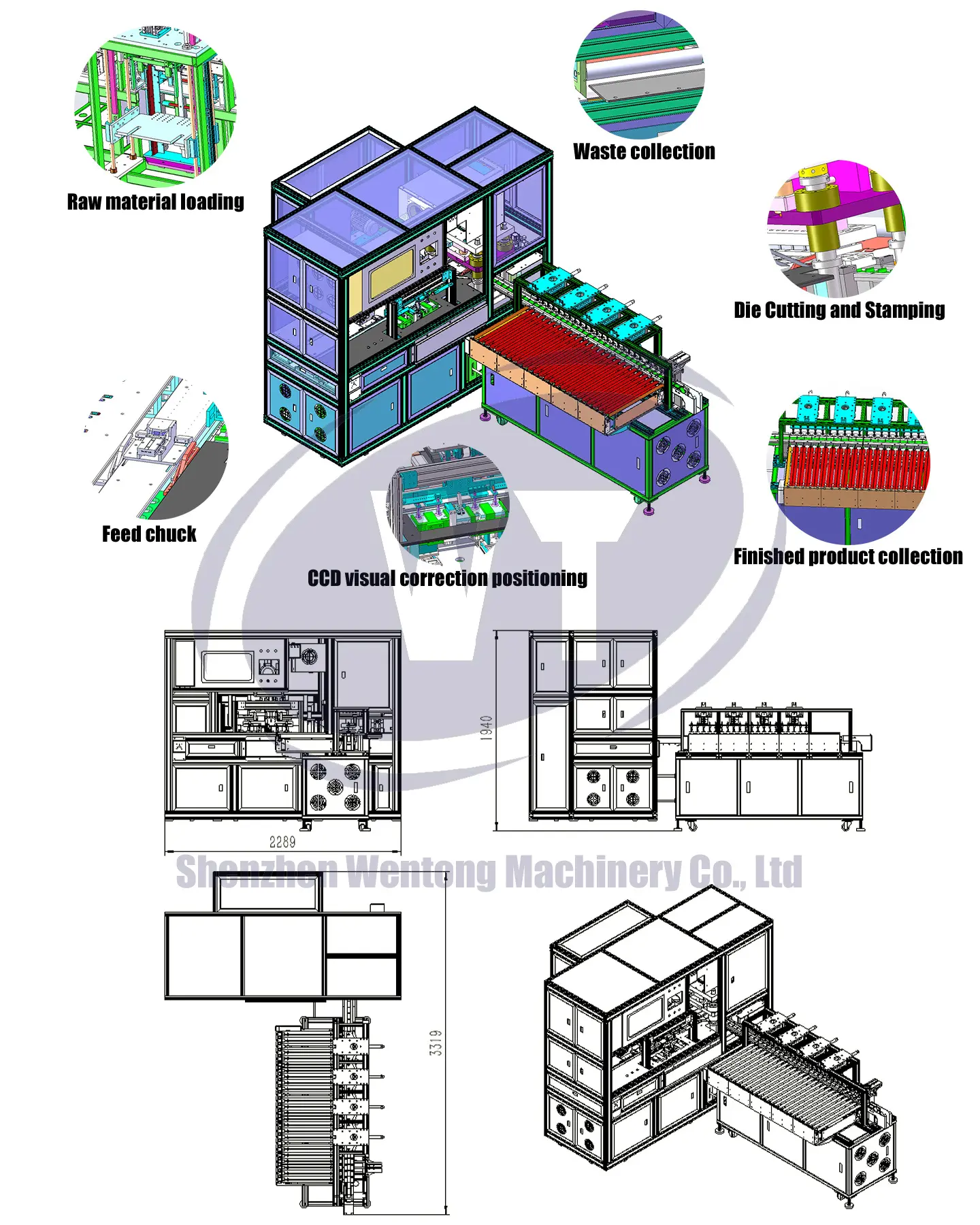

It features an advanced sheet feeding unit equipped with a vacuum suction cup. The suction cup holds only the uppermost sheet to guarantee single sheet feeding each time, preventing double pieces from entering the system.
Thanks to the integration of two stepper motors and high-precision photoelectric sensors, the machine achieves an exceptional punching accuracy of ±0.10mm.
This high-efficiency system offers an outstanding productivity rate, capable of processing between 20,000 and 55,000 pieces per hour (PCS/H), depending on the sheet format and configuration.
No, manual sorting is completely eliminated. The machine features an automatic sorting unit where a vacuum suction cup automatically transfers and distributes the punched cards into designated sorting lanes.
It is widely utilized in the manufacturing of membership cards, ID cards, and name cards. Additionally, it is highly beneficial for the advertising and printing industries to quickly mass-produce high-quality materials while reducing production costs.
