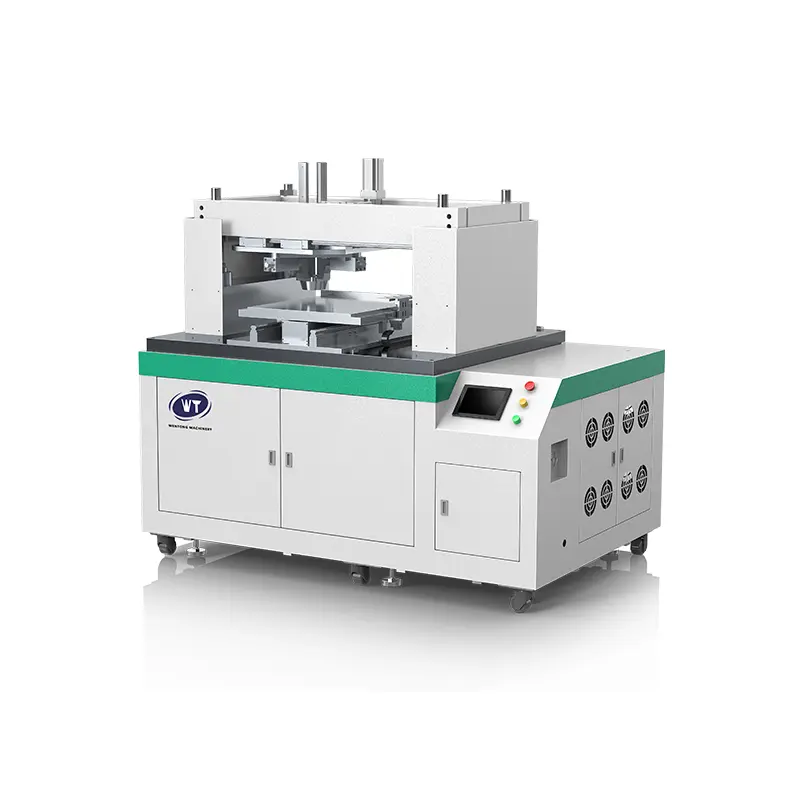

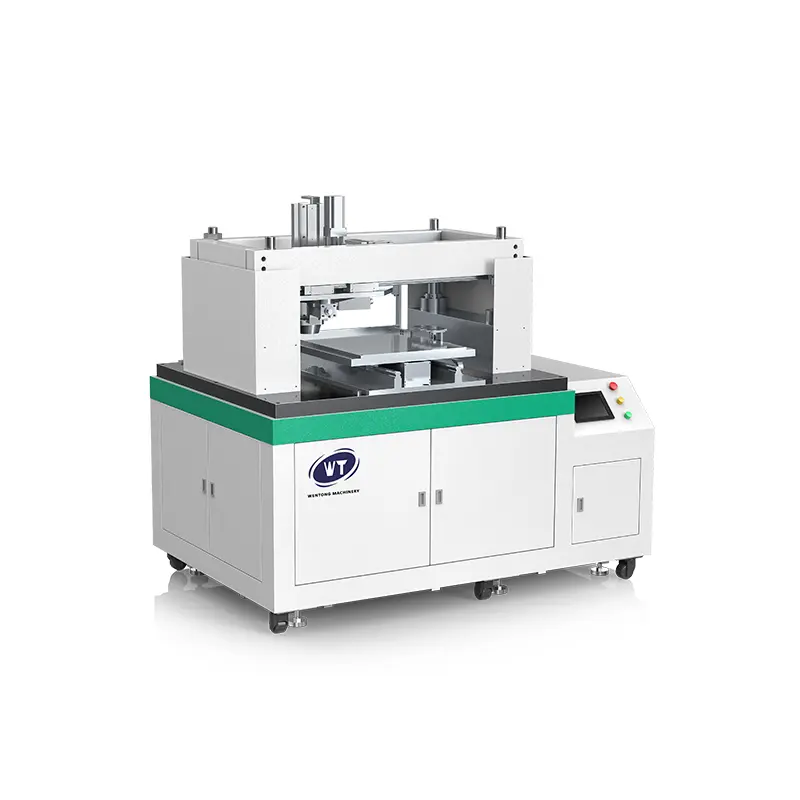

Label die cutter is a perfect die cutting machine to produce labels, trademarks, packaging consumables, instruction leaflets, etc. This die cutter is capable of die-cutting multi-layer labels in one step process, thickness is up to 30mm. Regardless of what shape is required to be cut, the label die cutting machine can guarantee high cutting accuracy.
| Power supply | AC 380V/50 HZ | Sheet format | Max. 600X500 |
| Total power | 8.5KW | Control | PLC control + servo system |
| Cutting pressure | 14T | Operators needed | 1 |
| Cutting accuracy | ±0.10mm | Dimension | L1600*W1200*H1700MM |
| Weight | 2600KG | Product size | Max. 200X200(mm) |
| Applicable materials | Paper etc. | Productivity | 4000cuts/H |
We offer a range of automatic die cutting machines, including label die cutting machine, paperboard die cutting machine, sheet die cutting machine and children’s book die cutting machine which are widely used in production of board books, saddle stitch books, etc.
This label die cutting machine is perfect for producing labels, trademarks, packaging consumables, children's books, board books, and instruction leaflets.
The machine is capable of die-cutting multi-layer labels and boards in a single-step process, handling a thickness of up to 30mm.
The sheet feeding unit integrates a premium OMRON sensor working with a specialized feeding module. All positioning parameters are easily adjustable to maintain maximum precision.
Yes, the die cutting unit utilizes an advanced hydraulic system, allowing operators to adjust both the cutting pressure (up to 14T) and speed according to production needs.
The machine features a stable and responsive PLC control system combined with a high-performance servo motor system. It operates on an AC 380V/50 HZ power supply.
The machine delivers productivity of up to 4,000 cuts per hour, has physical dimensions of L1600*W1200*H1700mm, and weighs approximately 2600KG.
