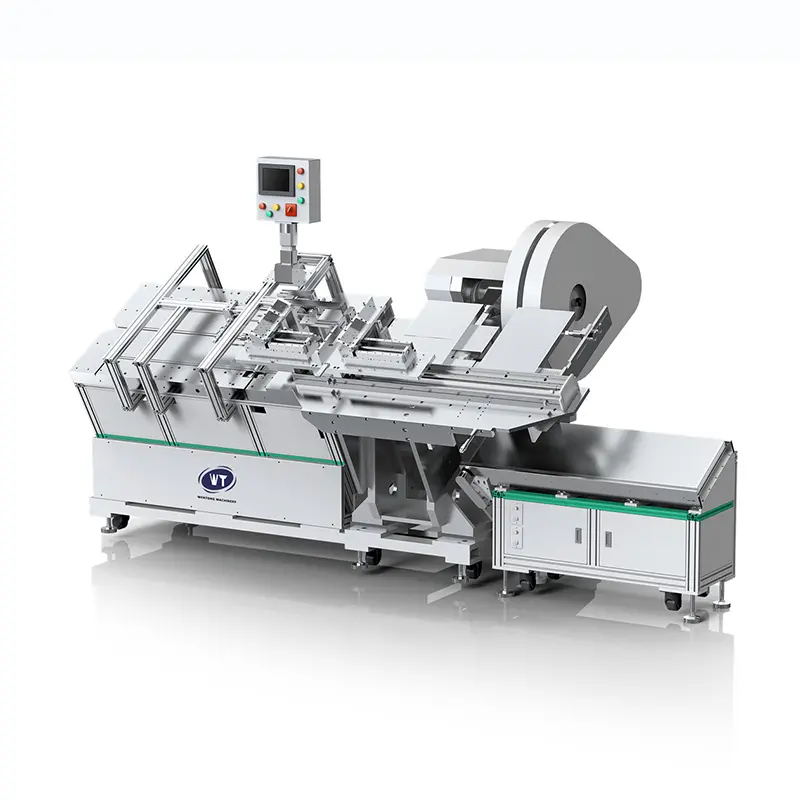

WT-009MQJ Book Inner Page Die Cutting Machine is suitable for cutting the inside pages of books. Unlimited product shape, die cutting products. The position is precise and the operation is simple and convenient. The machine uses a wooden knife die to cut pages. The equipment is suitable for the production of various on-board books, hardcover books and other products.
⚡ Finished Product Sample
1
Sheet feeding unit
It only needs to place books on the conveying belt, the books can be automatically transferred to the designated position.
2
Automatic alignment unit
After the book is fed to designated position by motor driven conveying belt, KEYENCE sensor checks the position of the book and the SMC cylinder aligns it to ensure accurate positioning.
3
Servo driven clamping unit
High torque servo motor driven clamping mechanism moves in reciprocating motion to transfer the books into die cutting station.
4
Die cutting unit
A range of die cutting tools is available to accommodate various book sizes, the height of cutting tool is adjustable according to the thickness of the book.
5
Book collection unit
Finished books are transferred by conveying belt for manual collection.
📊 Technical Parameters
| Power supply |
AC 380V/50 HZ |
Cutting tools |
Wood cutting tools |
| Total power |
4.5KW |
Control |
PLC control + servo system |
| Cutting pressure |
16T |
Operators needed |
2 |
| Cutting accuracy |
±0.20mm |
Dimension |
L3350*W1900*H2000MM |
| Weight |
2500KG |
Books size |
Max. 300X300(mm) / Min. 100X100(mm) |
| Book types |
Board book, notebook, paperback, hardcover, saddle stitch, etc. |
Productivity |
1600PCS/H |
✓ Seamless Cuts
No curving or bowing on the edges. Uniform cutting ensures professional finish compared to manual blades.
✓ Complex Shapes
Easily handle tiny curved details and intricate outlines with high precision and speed.
✓ Promote Creativity
Reduces labor time and costs, allowing more focus on design and post-production creative processes.
✓ Mass Production
Supports multiple cutting and layering, allowing for efficient large-scale manufacturing of uniform shapes.
Frequently Asked Questions
Q: What types of books can the WT-009MQJ process?
A: It is highly versatile and suitable for board books, notebooks, paperback books, hardcover books, and saddle stitch books.
Q: What is the maximum production capacity of this machine?
A: The machine can reach a productivity of up to 1600 pieces per hour, depending on the material and book size.
Q: How does the machine ensure the books are correctly aligned before cutting?
A: It uses an automatic alignment unit equipped with KEYENCE sensors and SMC cylinders to guarantee precise positioning for every cut.
Q: What is the cutting accuracy of the WT-009MQJ?
A: The machine offers high precision with a cutting accuracy of ±0.20mm.
Q: What size books can this machine handle?
A: It supports a wide range of sizes, from a minimum of 100x100mm up to a maximum of 300x300mm.
Q: Does the machine require complex manual operation?
A: No, the system is controlled by a PLC and servo system, making the operation simple and convenient for two operators.
