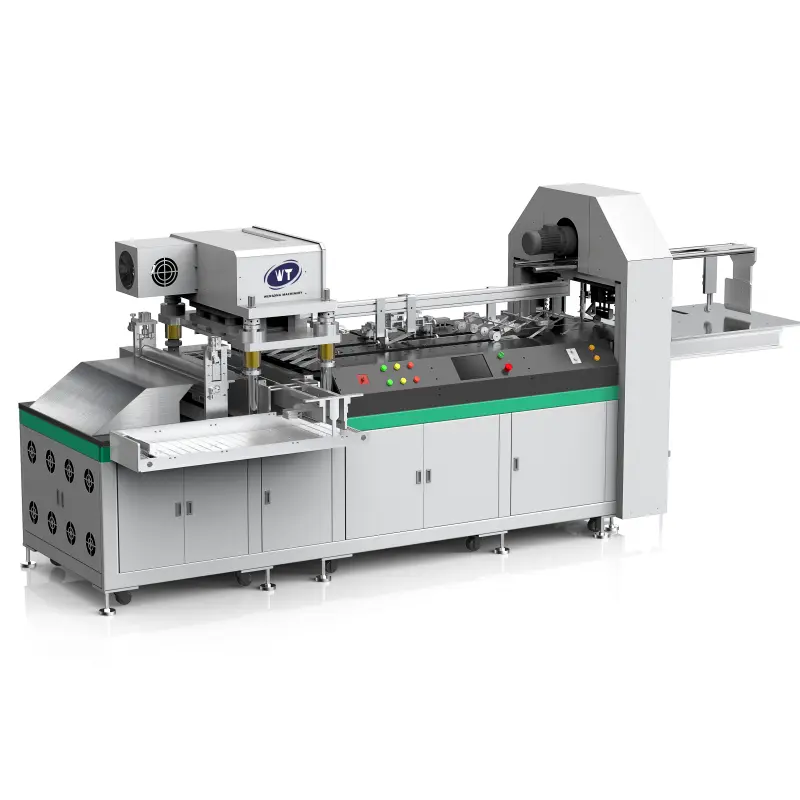

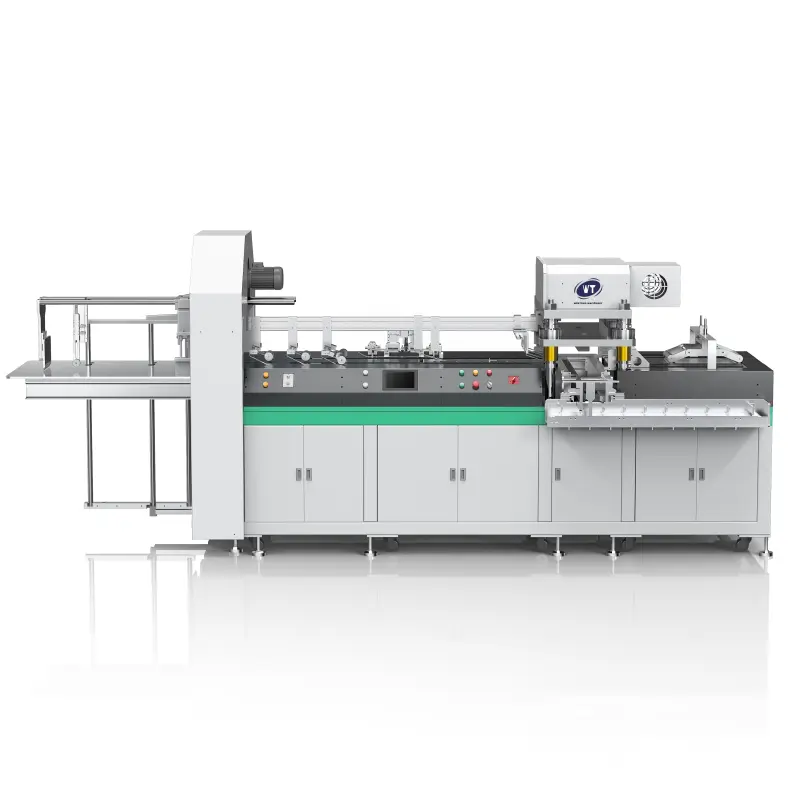

This automatic card punching machine features an automatic sheet feeder coupled with KEYENCE sensor for reliable positioning. Punched cards are created in one step through processes of card forming, corner rounding, hole punching and creasing, and can be automatically collected in an orderly manner. The card punching system is suitable for manufacturing cards of various materials of PVC, ABS, PET, as well as PVC/ABS composite materials with sizes ranging from 54*54mm to 210*210mm.

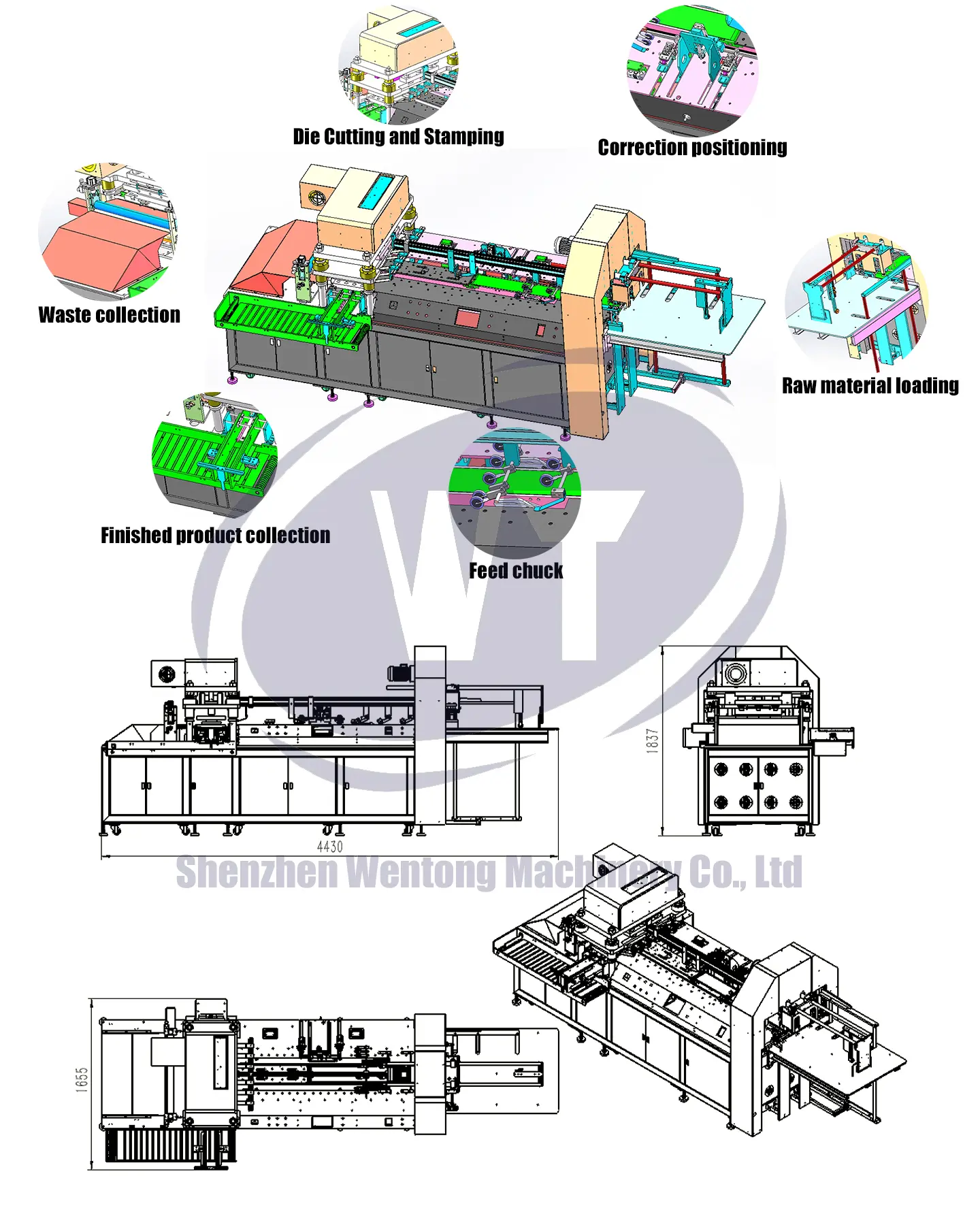

Coupled with vacuum suction cups and stepper motor, the sheet feeder can implement automatic suction and feeding process.
After the sheets are fed to designated position by motor driven conveying belt, KEYENCE sensor provides automatic alignment and ensures accurate positioning.
High torque servo motor is adopted to guarantee stable work pressure and low noise level, the working speed is adjustable.
Specially designed card collecting structure allows punched cards to be automatically collected in an orderly manner, while the cutting scraps are automatically removed, eliminating the need for secondary sorting.
| Power supply | AC 380V/50 HZ | Sheet format | Max. 1000*700MM Min. 550*450MM |
| Total power | 10KW | Control | PLC control + servo system |
| Air source | 6 kg/cm² | Operators needed | 1 |
| Air consumption | Approx. 80L/min | Dimension | L4450*W1500*H1850MM |
| Punching pressure | 2T-6T | Drive | Servo system |
| Weight | Approx. 1800KG | Punched card size | Max. 210*210MM Min. 54*54MM |
| Punching accuracy | ±0.10mm | Productivity | 25000~55000 PCS/H |
| Applicable card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
The function of a card cutting machine is to improve production efficiency. In traditional manual cutting methods, workers use knives to cut cards by hand, which is inefficient and prone to inaccurate cuts and uneven edges. With the advent of card cutting machines, the cutting process of cards has been automated, greatly improving production efficiency and saving labor and time costs.
This machine is highly versatile and suitable for manufacturing cards made of paper, PVC, ABS, PET, as well as PVC/ABS composite materials.
The machine offers high-speed productivity, capable of producing between 25,000 and 55,000 pieces per hour (PCS/H) depending on the configuration and material.
It features an automatic alignment unit integrated with a high-precision KEYENCE sensor, which ensures reliable positioning and a punching accuracy of ±0.10mm.
The system supports a wide range of finished card sizes, ranging from a minimum of 54*54mm up to a maximum of 210*210mm.
No. The machine is designed with a special card collecting structure that automatically gathers finished cards in an orderly manner while simultaneously removing cutting scraps, eliminating the need for secondary manual sorting.
It automates the entire process of card forming, corner rounding, hole punching, and creasing in a single step. This significantly improves production efficiency, ensures clean and even edges, and reduces labor and time costs compared to manual cutting.
